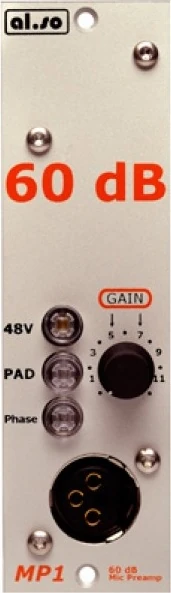

AL.SO MP1 is a pre-amp for the 500 series, manufactured by AL.SO.
History[]
The AL.SO MP1 was released in 2008.[1] The production of the module ceased in 2013.[2]
Official description[]
60 db Mic/Line Preamp PRICE : 595 € ex VAT
Fully compatible with API® 500 series format.
- Transformer input (Sowter Custom Transformer), electronicaly balanced output.
- 48V Phantom Power switch
- Passive phase reverse circuitry.
- Inputs available on front and rear connector
- No audio passing in switches, all switching made with relays.
- High quality Clarostat potentiometers.
- Performances:-2dB to 60dB gain
- THD at 60 dB gain:0,007% @ 1 kHz
- THD at-2dB dB gain:0,0041%@ 1 kHz
- Bandwith at 60 dB gain:10Hz/100 kHz: ± 0,3 dB
- Bandwith at -2 dB gain:10Hz/100 kHz: ± 1 dB
- Power: draw less than 90mA per voltage rail.
Please, note that MP1 is one channel of an MP2 in one unit.
Exist in CALIFORNIA EDITION, using JENSEN 990 C OP AMP: 699 € ex VAT
