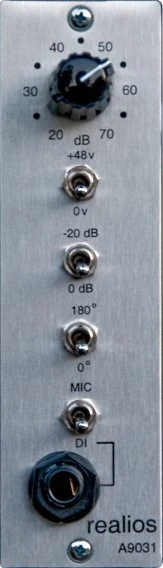

AnaMod Realios A9031 is a pre-amp for the 500 series.
Official description[]
The Classic Dick Swettenham Olympic Studios Design
Dick Swettenham’s three transistor microphone preamp design is truly a thing of beauty. The sound of these types of microphone preamps is legendary. You’ve heard it on records made at Olympic studios in the 60s and 70s. It’s now available again in a 500 series format package.
This version features a class-A transistor output stage which will drive the most demanding of loads. This feature is most welcome since the original Olympic microphone preamps were integral parts of their respective mixing desks and never meant to be connected directly to an output.
Other additions include: finer gain steps (5 dB), a high-impedance FET DI, phase reverse switch, and switchable phantom power.
A9031 Specifications
- Microphone Input Impedance: 1.2KΩ, balanced
- DI Input Impedance: > 3.3MΩ
- Output Impedance: less than 50Ω
- Max. Output Level: +32dBu, transformer balanced
- Gain: 20 to 70 dB in 5 dB steps
- Frequency Response: +/- 1 dB from 7Hz to 25kHz
- Noise Level: better than 74dB below +4dBu, 0-30kHz
A9031 Features:
- Switch for phantom power
- 20 dB pad
- Phase reverse switch
- High-Impedance DI
