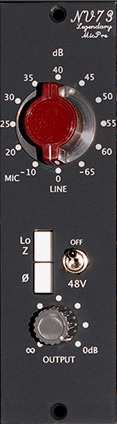

DON Classics NV73 is a pre-amp for the 500 series.
Official description[]
Overview
- 0dB line setting to warm up your digital recordings while mixing
- Output attenuator allows more sound options
- Impedance switch lets you choose 300 ohms for your old ribbon mics
- DC-DC converter to change the +-16V(32V total) to 24V so the module just sees a clean single 24V rail.
- Slow start circuit, meaning the module never uses more than the 130mA allowed. Even inrush current stays below 130mA.
Specs
- Input (incl. Line setting) are transformer balanced/earth free
- Microphone Input: Gain 0dB to + 65db in 5dB steps. (around 71dB with Lo Z button pressed)
- Mic Input impedance: around 1200 ohms normally; or 300 ohms (with Lo Z pressed)
- Output: Maximum output is >+26dBu into 600 ohms.
- Output is transformer balanced and earth free
- Output impedance: Around 50ohms
- Freq Response: +0dB/-0.5dB 20Hz to 20kHz.
- ±16 vdc converted to single 24V rail inside module. Total current draw 125mA max
- Output pot: unity at CW, mute at CCW. -6dB at midpoint
- Polarity flips 180 degrees when pressed in
- Phantom 48V applied when in down position.
