FiveFish Audio NK-72DI is a pre-amp for the 500 series, manufactured by FiveFish Audio.
The NK-72DI has the same audio path as the FiveFish Audio X-72 module.[1]
Official description[]

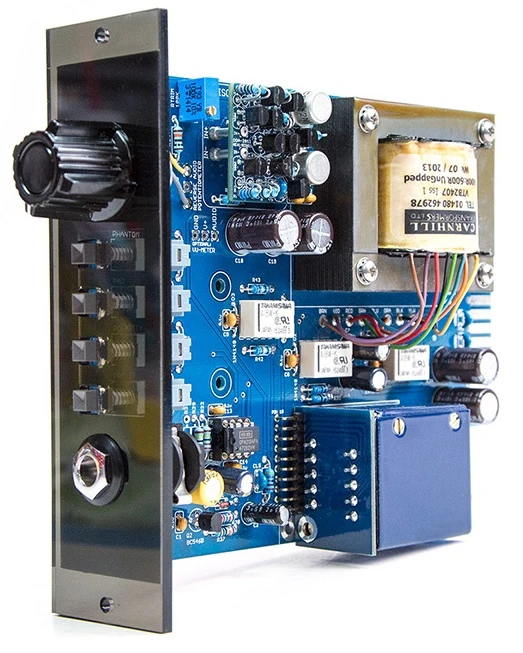

The NK-72DI is a 500 Series Mic Preamp with built-in DI input. It is based on our popular X-72 500 Series Preamp, with an added Direct Inject (DI) circuitry for high-impedance signal sources like electric or bass guitars. It has a big, punchy sound which also adds a deep, nice, warm coloration to the overall sound. Low frequencies come out tight and punchy, while high end is silky smooth - thanks to those huge Carhill transformers!
This is a great project for a first-time beginner to kit building. The kit is very affordable, but don't let it's low price fool you. This preamp delivers top-notch performance.
An API Rack/Lunchbox or compatible rack is required to supply power and the necessary XLR input and output connections to the SK-1DI module.
- Now available as Partial Kit or Complete Full Kit (with included Input & Output Transformers and Discrete OpAmp)
- 500 Series format, for use with API rack/lunchbox or compatible rack
- Precision Laser cut tinted/transparent front panel - included! So you can show-off the "guts" of your DIY build
- Aluminum sled carrier - Included!
- Knobs - Included!
- Using Carnhill/UK Input & Output Transformers (separate purchase)
- Uses a 990/2520 footprint Discrete OpAmp, like our DOA-12 Discrete OpAmp (separate purchase)
- Soft-start, slow ramp-on +48V phantom power
- LED indicators for phantom power, -20dB pad, polarity reverse and Mic/DI input
- Relay controlled Pad
- Relay controlled Polarity Reverse
- Built-in DI 1/4" jack inputs for electric and bass guitars
- Transformer balanced input and output section
- Input RFI protection
- Output RFI protection
- Gold-plated, machined, low-profile IC sockets
- Use of high quality 1% Metal Film resistors, and high-quality ceramic and electrolytic capacitors
- Easy to assemble, easy to troubleshoot design
- Optional VU-Meter board, 12-step gain selector switch, and Aluminum Front Panel (separate purchase) to take it to the next level of customization!
