FiveFish Audio PEQ-503 is an EQ for the 500 series, manufactured by FiveFish Audio.
History[]
The FiveFish Audio PEQ-503 was released in 2010.[1]
Official description[]
PEQ-503 Equalizer
Single-channel three (3) band Inductor-based equalizer, designed for the popular API VPR500 Rack format

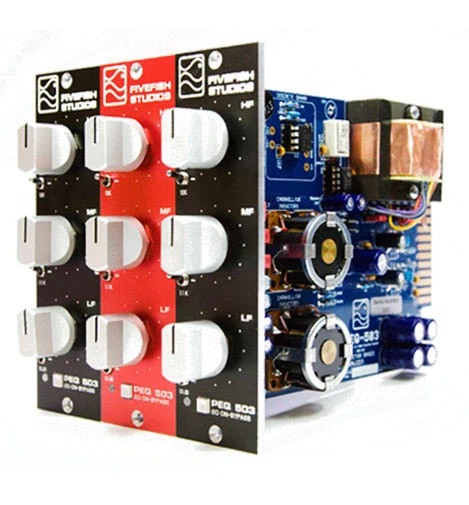

The FiveFish Audio PEQ-503 is a beautiful, high-quality, single-channel three (3) band Inductor-based equalizer, designed for the popular API VPR500 Rack format.
Each frequency band has two (2) selectable frequencies, and a bypass switch. It also has an overall EQ In/Bypass switch to let you easily make before & after sound comparisons.
The equalizer's smooth broad curves makes tonal adjustments easy and fast. You can go from small, subtle changes to extreme carving or boosting, up to +/- 18dB per band. The SUB and AIR frequency bands can give your tracks the chest-thumping punch you want, and that extra sparkle at the top end without sounding harsh. The mid frequencies band takes care of adding that extra presence to your tracks to make it pop.
Features
- 3-Band EQ - Inductor Based EQ
- Two Frequency Selection switch per band + independent flat/bypass position
- 12K/AIR HF control +/- 18dB gain
- 1.1K/3.2K MF control +/- 18dB gain
- SUB/120Hz LF control +/- 18dB gain
- EQ On/Bypass switch
- Relay-controlled Bypass
- Electronically Balanced Inputs using inGenius Technology
- Electronically Balanced Outputs using OutSmarts Technology
- Output Tranformer option
- Discrete OpAmp option, or PDIP chip
- Using Carnhill/UK VTB inductors for LF and MF control
- WIMA caps for EQ filters
- 1% metal resistors
- Bourns Potentiometers
- Solid Machined Aluminum Knobs
- CNC-milled/engraved/paint-filled front panel
- Double-sided, plated through PCBs
- Low Noise Equalizer
- Jumper settings for experimentation, changing the EQ filter frequencies
