Hacienda Labs 4000 is a compressor and gate for the 500 series, manufactured by Hacienda Labs.
History[]
The Hacienda Labs 4000 was released in 2016.[1]
Official description[]

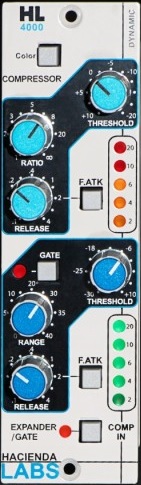

HL 4000
Rediscover this compressor / gate section based on the dynamics of the mythical SSL4000E and taste the "Color" button opens up new sound dimensions to this section comp / gate / exp.
Enjoy the "bite" of SSL specifically for trimming and freeze the rhythmic elements in your mix. Limit to extremes to pump your battery room by exemple. With the "Color" button, true pride of the brand, you can compress more naturally and keep your voices more air and harmonics in the manner of some Neve compressors. The latter acts as a variable Softknee depending on the level and the drive frequency of the side chain circuit.
Technical Specifications:
- Format : 500 series chassis, compatible API
- Nominal level input / ouptut: +4dBu
- Circuit side chain: true RMS converter designer around AD536 Analog Device
- Compresseur :
- Ratio : 1 to ∞
- Threshold : +10 to -20dB
- Release : 0.1 to 4s
- Attack : 30ms for 20dB gain reduction
- Fast Attack : 3ms for 20dB gain reduction
- Gate/Expander :
- Ratio gate : 20:1
- Ratio Exp : 2:1
- Threshold : -30 to +10dB
- Range : 40dB
- Release : 0.1 to 4s
- Attack : linear 1ms for 40dB
- F attack: linear 0.1ms for 40dB
