JLM Audio HPM500

JLM Audio HPM500 is a mixer for the 500 series, manufactured by JLM Audio.

History

Although the JLM Audio HPM500 appears to have been announced in 2007, it is unknown if it was ever released. The module has been available on the secondhand market, however.

Official description

NEW HPM500 6 Channel Mixer

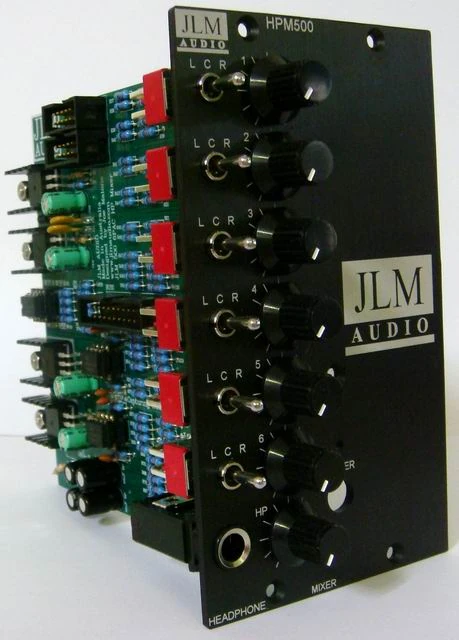

HPM500 6PAK Balanced input mixer with switched panning and level control per input. Has ribbon cable input that plugs into the JLM Buss connector mic pre EQ and compressor modules. or you can wire the ribbon cable to the back plane to the 6 XLR output pins 2 and 3 if not using JLM modules. Fits API-6B Lunchboxes in the wasted space beside the power supply and plugs into 10 IDC power ribbon cable for power for the internal power supply. High power modified hybrid output amps can drive even the most difficult headphones to clean maximum output level. Also HP output is perfect for sending a mix be recorded. (The extra knob to the far right is part of the listening setup in our test lunchbox. Not part of the normal mixer)

Features for each Channel

• 6 x 20k Balanced inputs
• Pan switch per channel for Left / Centre / Right panning.
• Level control pot for each channel.
• Master Level control.
• High power headphone output jack on front panel.
• Double sided Gold plated rear edge connector.
