LaChapell Audio 583s MK2

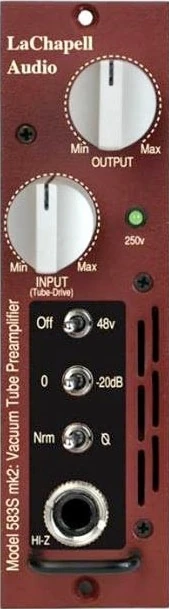

LaChapell Audio 583s MK2 is a pre-amp for the 500 series, manufactured by LaChapell Audio.

History[]

The LaChapell Audio 583s MK2 was released in 2014.[1] It replaced the LaChapell Audio 583s (MK1).

Official description[]

The LaChapell Audio Model 583s is the world’s first vacuum tube preamplifier designed for the 500 series format. Now the 583S mk2 is a single bay unit! The LaChapell Audio 583S mk2 is the latest example of our legendary 583 vacuum tube preamplifier for the 500 series format. Based largely on our 992EG, the 583s mk2 is the perfect solution for those looking to add that extra warmth and character to their “lunch box” with versatility that only a properly powered 12AX7 vacuum tube can provide.

POWER SUPPLY The 583S mk2, was built to meet API/VPR certification requirements. Using multiple internal DC/DC converters, the 583’s 12AX7 tube enjoys proper power for both plate (250 volts) and filament (12 volts). Unlike some other tube preamps for the 500 series, we do not starve the tube of voltages in any way. And, since this all occurs within the 583 module, there is no worry of harming your 500 series power supply.

COMPONENTS The 583s mk2 features the CineMag CMMI-10 microphone input transformer and Jensen’s best line output transformer; the JT-11. Typical preamplifier features are available as well including 48v, a 20 dB pad and polarity reverse. The mk2 also sports an auto-switching, transformer-less Hi-Z input for instruments.

CONTROLS In operation, the user has individual control over the input and output gain stages via 41-position potentiometers. This, like its 992 older brother, provides total flexibility to explore the 583s’ broad sonic pallet; enhancing its versatility for all of your recordings. The new mk2 also includes a convenient handle for easy insertion and removal.
